What is a 4 pin XLR connector and why does it matter for digital cameras
Understanding the 4 Pin XLR Connector in Camera Systems
The 4 pin XLR connector is a specialized type of connector widely used in digital camera setups, especially in professional video and audio workflows. Unlike the more common 3 pin XLR, the 4 pin version is designed to handle both power and balanced audio signals, making it a crucial component for reliable and high-quality camera operations.
Why the 4 Pin XLR Matters for Digital Cameras
In digital cameras, especially those used for broadcast or film production, maintaining clean and uninterrupted power and audio connections is essential. The 4 pin XLR connector stands out because it can deliver DC power to cameras or accessories, while also supporting balanced audio connections for microphones. This dual functionality reduces the number of cables needed and helps keep setups organized and efficient.
- Balanced audio: The 4 pin XLR supports balanced audio, which minimizes interference and noise—critical for professional sound recording.
- Power delivery: It can supply power to cameras or accessories, such as lights or monitors, through a single cable.
- Secure connection: The locking mechanism of the XLR connector ensures a stable and reliable connection, even in demanding environments.

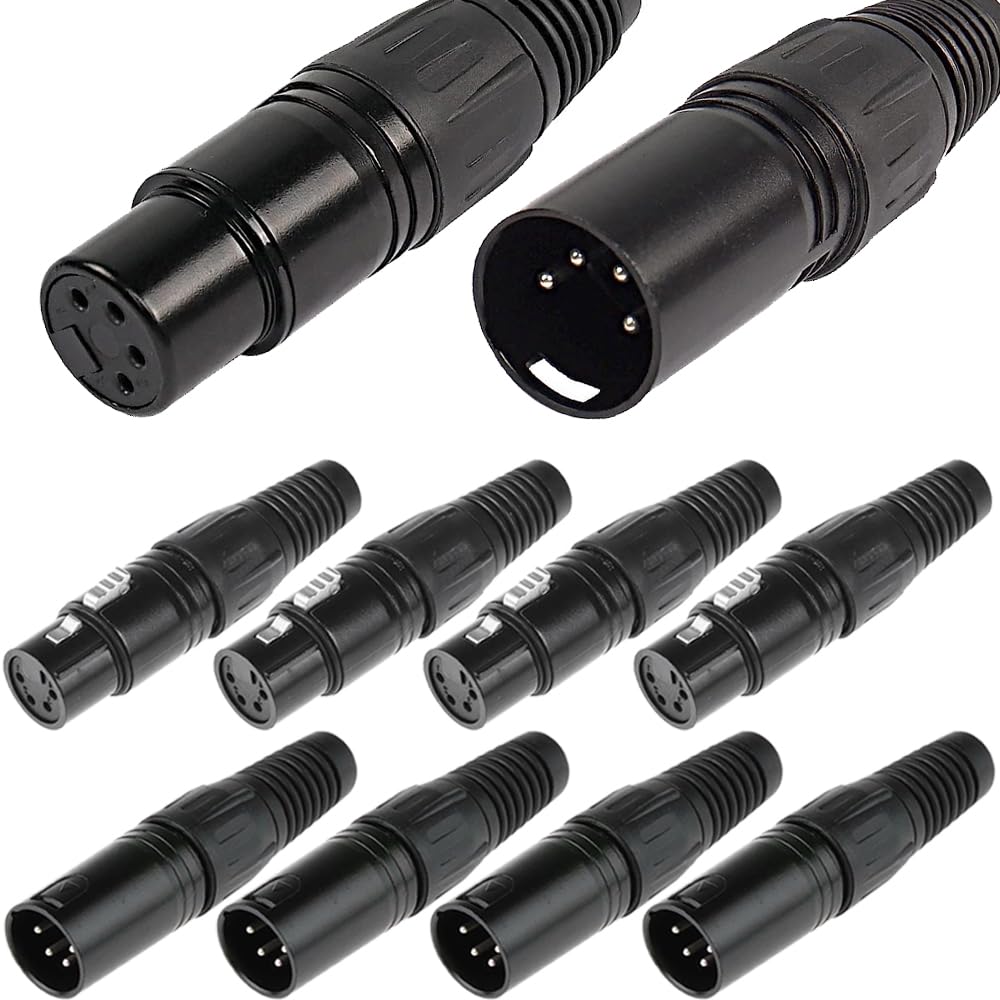

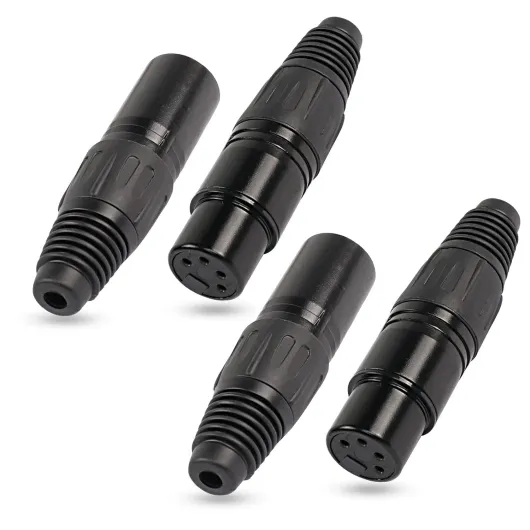

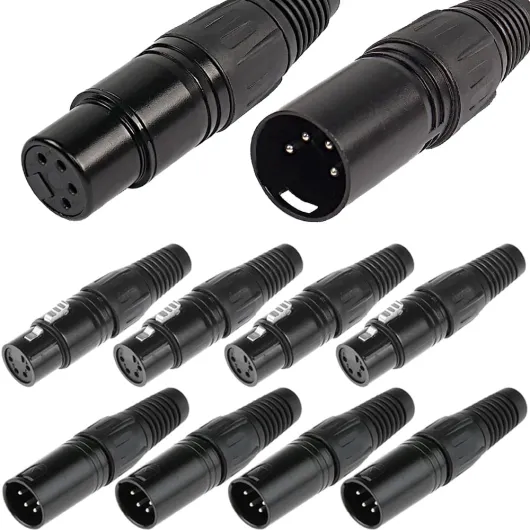

There are different types of 4 pin XLR connectors, including male and female versions, panel mount, and cable mount options. The connectors come in various finishes, such as black or silver, and can be found in straight or right angle (angle) designs to fit different mounting needs. Choosing the right type—like a male cable or female XLR—depends on your camera and accessory requirements, which will be discussed further in the compatibility and selection sections.
When setting up your camera, you may encounter terms like "xlr male," "xlr female," "pin male," or "pin female." These refer to the gender and pin configuration of the connector, which must match between your camera and accessories for proper operation. For example, a male solder connector is often used for custom cable builds, while a panel mount connector is fixed to equipment chassis.
Proper use of the 4 pin XLR connector can help prevent common issues such as power dropouts or audio interference. If you are experiencing problems like dead pixels or dust on your camera sensor, it's important to address those as well. For more on troubleshooting these issues, check out this guide on identifying and fixing dust or dead pixel issues on your digital camera.
Key benefits of using a 4 pin XLR connector in camera setups
Why Professionals Rely on 4 Pin XLR Connectors
The 4 pin XLR connector is a staple in professional digital camera setups, and for good reason. Its design supports balanced audio transmission, which is crucial for reducing unwanted noise and interference. This is especially important when working in environments with lots of electronic equipment, where clean audio is a must. The connector’s robust build, often available in black or silver finishes, ensures durability whether you’re using a panel mount or cable mount type.
Reliable Power and Audio Connections
One of the main advantages of the 4 pin XLR is its ability to carry both power and audio signals. This dual function simplifies your workflow by reducing the number of cables needed. For example, a male cable can deliver power to a camera accessory while also transmitting balanced audio from a microphone connector. This is particularly useful for field recording, where space and efficiency matter.
- Balanced audio: The pin layout supports left and right channels, minimizing hum and interference.
- Secure connection: The locking mechanism of the XLR plug prevents accidental disconnection, which is vital during shoots.
- Versatility: Compatible with a wide range of products, from microphones to power supplies, thanks to standardized pin male and pin female configurations.
Durability and Flexibility in the Field
Whether you choose a male XLR or female XLR, these connectors are built to withstand frequent use. The series includes options for right angle or straight connectors, making it easier to manage cables in tight spaces. Many professionals prefer connectors pin in black for a discreet look, while silver options are also common. The ability to choose between cable mount and panel mount connectors adds flexibility to your setup, allowing you to adapt to different camera rigs and accessories.
For those interested in how specialized lenses can further enhance your camera setup, you might find this resource on what makes prime lenses special for digital cameras helpful.
Common applications of the 4 pin XLR connector in digital camera workflows
How 4 Pin XLR Connectors Integrate into Camera Workflows
The 4 pin XLR connector is a staple in professional digital camera setups, especially where reliable power and balanced audio are critical. You’ll often find these connectors in environments where both audio and power need to be delivered through a single cable, streamlining the workflow and reducing clutter on set. Here’s how these connectors typically fit into digital camera operations:
- Supplying Power to Cameras and Accessories: Many cameras and related gear use the 4 pin XLR connector for DC power input. This is especially common with broadcast cameras and field recorders, where a stable power source is essential for long shoots. The panel mount and cable mount options allow for flexible integration, whether you’re connecting to a battery pack or a power distribution box.
- Balanced Audio Transmission: While the 3 pin XLR is standard for microphones, the 4 pin XLR can also be used for balanced audio in some setups, particularly when combined with power delivery. This helps reduce interference and ensures clear sound, which is vital for interviews and live events. The male xlr and female xlr connectors are designed to lock securely, preventing accidental disconnections.
- Connecting Camera Accessories: Devices like field monitors, LED lights, and wireless transmitters often use 4 pin XLR connectors for power. Choosing the right xlr cable and mount connector ensures compatibility and reliability across your gear.
In multi-camera productions, the 4 pin XLR’s ability to handle both power and audio makes it a go-to choice for simplifying cable management. This is especially useful when using camera arms or rigs, where minimizing cable tangles is crucial. For more on optimizing your setup, check out this guide on how a camera arm can transform your photography setup.
- Live Streaming and Broadcast: In live production, the 4 pin XLR connector is often used to connect cameras to central power sources and audio mixers. The xlr plug and connector xlr options support quick changes and secure connections, which are essential in fast-paced environments.
- Studio and Field Use: Whether you’re in a controlled studio or out in the field, the durability of pins black and silver XLR connectors ensures they can withstand frequent use and harsh conditions. The male solder and female solder types allow for custom cable builds to suit unique setups.
Overall, integrating the right 4 pin XLR connector into your digital camera workflow can lead to more reliable power delivery, cleaner audio, and a more organized shooting environment. Understanding the different xlr pin configurations and matching them to your camera and accessories is key to getting the most out of your gear.
Compatibility considerations: matching your camera and accessories
Ensuring Your XLR Connectors Fit Your Camera System
When integrating a 4 pin XLR connector into your digital camera setup, compatibility is a key concern. Not every camera or accessory supports the same type of XLR connector, so it’s essential to match the right cable, mount, and connector type for reliable performance. Here’s what you need to consider:
- XLR Pin Configuration: Check if your camera requires a specific pin arrangement. Some models use a standard 4 pin XLR male, while others might need a female xlr or a different pin layout. Always verify the number of pins and their function—power, audio, or balanced signal—before purchasing.
- Connector Gender: Identify whether your device needs a male xlr or xlr female connector. For example, a camera body might have a female xlr panel mount, requiring a male cable or male solder connector on your cable. Mixing up male and female connectors is a common mistake that leads to connection issues.
- Mounting Style: Consider if you need a cable mount, panel mount, or angle mount connector. Some setups benefit from a right angle xlr plug for tight spaces, while others require a straight cable mount for flexibility. The mount connector type can affect both the durability and the ease of use in the field.
- Balanced Audio and Power Needs: If your workflow relies on balanced audio or phantom power for microphones, ensure your xlr cable and connectors support these features. Not all 4 pin xlr connectors are wired for balanced audio, so double-check the product specs.
- Material and Finish: XLR connectors come in various finishes, such as black or silver. While this is partly aesthetic, some users prefer black connectors to reduce reflections on set, while others choose silver for visibility. The material can also impact durability, especially for frequent plugging and unplugging.
| Component | Common Types | Key Considerations |
|---|---|---|
| XLR Connector | 4 pin, male, female, black, silver | Match pin layout, gender, and finish to your gear |
| Cable | Balanced, male cable, cable mount | Check for balanced audio and power compatibility |
| Mount | Panel mount, angle, solder | Choose based on space and installation needs |
Before investing in a new xlr connector or cable, review your camera’s manual and accessory documentation. This ensures that your connectors pin, cable, and mount are fully compatible, minimizing the risk of connection failures or signal loss. If you’re working with a series of products, consistency in connector type and pin arrangement can save time and reduce troubleshooting down the line.
Tips for choosing the right 4 pin XLR connector for your needs
Factors to Consider When Selecting a 4 Pin XLR Connector
Choosing the right 4 pin XLR connector for your digital camera setup is crucial for reliable performance and compatibility. Here are some practical points to guide your decision:
- Connector Type and Gender: Identify whether you need a male or female XLR connector. For example, a male cable or female xlr may be required depending on your camera's input or your microphone's output. Double-check the panel mount or cable mount options to ensure a secure fit.
- Balanced Audio Support: If you want to minimize interference and maintain high-quality audio, select a balanced 4 pin XLR cable. Balanced audio is essential for professional microphone setups and reduces unwanted noise.
- Build Quality and Material: Look for connectors with robust construction. Black or silver finishes are common, but more important is the durability of the mount connector and the reliability of the pins. Products with a solid series reputation tend to last longer.
- Power Requirements: Some digital cameras use the 4 pin XLR for power delivery. Confirm the voltage and current specifications of both your camera and the product you are connecting. Using the wrong pin xlr configuration can damage your equipment.
- Angle and Space Constraints: Consider the angle of the connector, especially if your camera rig is tight on space. Right-angle xlr plug or mount options can help with cable management.
- Compatibility with Accessories: Ensure the xlr pin layout matches your microphones, power supplies, or other accessories. Some setups require a specific xlr male to xlr female configuration, or a connector xlr with a unique pins black or pin female arrangement.
- Ease of Soldering and Installation: If you plan to assemble your own cables, check if the male solder or female solder terminals are accessible and easy to work with. This can save time and ensure a reliable connection.
Checklist for Your Camera Setup
| Feature | Why It Matters | What to Look For |
|---|---|---|
| Connector Gender | Matches camera or accessory ports | Male, Female, Panel Mount, Cable Mount |
| Audio Type | Ensures balanced audio transmission | Balanced, Unbalanced |
| Build Quality | Durability and reliability | Metal housing, secure pins, black or silver finish |
| Power Handling | Prevents equipment damage | Check voltage/current specs |
| Space & Angle | Fits your rig layout | Straight or right-angle connectors |
| Solderability | Ease of custom cable assembly | Accessible solder points |
By carefully considering these factors, you can select the right 4 pin XLR connector that matches your digital camera, microphone, and accessory needs. This helps ensure reliable power and balanced audio for your workflow.
Troubleshooting common issues with 4 pin XLR connectors in digital cameras
Identifying Connection Problems
When working with a 4 pin XLR connector in digital camera setups, the most frequent issue is a poor or unstable connection. This can lead to intermittent audio, loss of power, or even no signal at all. Start by checking if the xlr cable is securely attached to both the camera's panel mount connector and the accessory, such as a microphone or power supply. Inspect the pins—both male and female xlr types—for any visible damage, corrosion, or misalignment. Even a slight bend in a pin male or pin female can disrupt the balanced audio or power transmission.
Diagnosing Audio Distortion or Dropouts
If you notice audio distortion, hum, or dropouts, the issue might be with the cable or the connectors pin themselves. Use a different xlr cable or swap between xlr male and xlr female connectors to isolate the problem. Balanced audio connections rely on all pins black or silver being clean and properly soldered. Loose solder joints in a male solder or cable mount connector can cause crackling or loss of signal. Also, ensure the microphone connector is compatible with your camera's input type—some products require a specific series or angle of xlr plug.
Resolving Power Delivery Issues
For cameras that use a 4 pin xlr for power, a faulty cable or connector xlr can prevent the camera from turning on or maintaining a stable power supply. Check that the cable mount and panel mount connectors are rated for the required voltage and current. Inspect the pins for discoloration, which can indicate overheating. Using the wrong xlr pin configuration or mismatched male cable and female xlr connectors can also cause power issues.
Addressing Compatibility and Mounting Challenges
Sometimes, a connector may not fit securely due to differences in product design or mount connector standards. Double-check that your xlr connector matches the camera and accessory specifications, including pin layout and mount type. If you’re using a right angle or straight xlr plug, ensure it doesn’t interfere with other ports or accessories. For panel mount or cable mount installations, verify that the connectors are properly secured to avoid accidental disconnection during use.
Quick Troubleshooting Checklist
- Inspect all pins (male and female) for damage or corrosion
- Test with a known good xlr cable and connector
- Confirm compatibility between camera, cable, and accessory
- Check solder joints on male solder and cable mount connectors
- Ensure balanced audio and power requirements are met
- Secure all mounts and connectors to prevent movement
By following these steps, you can quickly identify and resolve most issues with 4 pin xlr connectors in digital camera workflows, ensuring reliable audio and power connections for your equipment.
