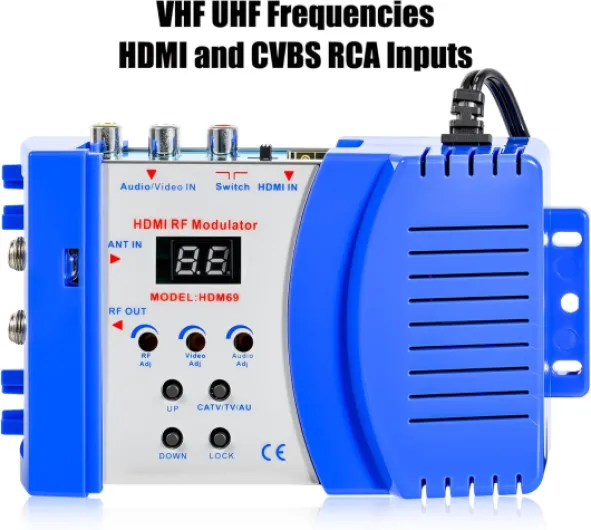

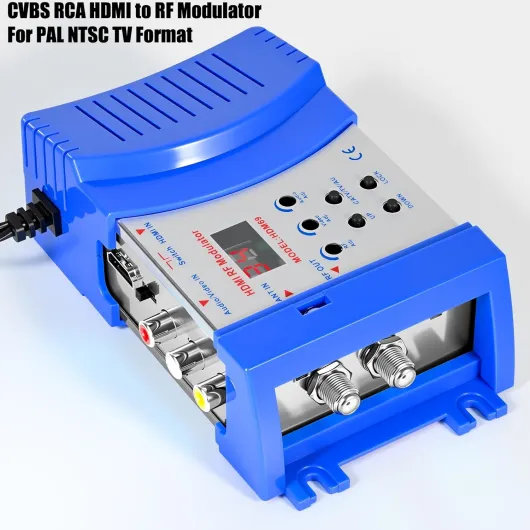

HDMI to RF Modulator, VHF UHF AV to RF Coaxial Converter, CVBS RCA HDMI to RF Modulator, for TV PAL NTSC Format, for Home TV Switch Audio Video, F Female Connectors

• ＋ Versatile format support: PAL and NTSC
• ＋ Multiple inputs: HDMI, AV, and RCA
• ＋ Easy setup for home TV systems
• ＋ F Female connectors for secure connections

hdmi to rf modulator, vhf uhf av to rf coaxial converter, cvbs rca hdmi to rf modulator, for tv pal ntsc format, for home tv switch audio video, f female connectors

• hdmi to rf modulator supports both vhf and uhf frequencies, and hdmi and cvbs rca inputs
• hdmi to rf converter supports multiple resolutions - 1080p/1080i/720p/576p/576i/480p, and features a wide frequency response
• hdmi to rf coaxial converter allows direct rf output via f female connectors, and no driver installation required
• rf modulator for tv allows users to adjust the av output level, catering to various equipment sensitivities and preferences
• hdmi to rf modulator is compact and lightweight, made of high-quality abs and metal materials, ensuring the modulator can withstand regular use

Specification

• model: hdm69
• voltage: ac 90-240v
• tv standard format: pal, ntsc
• frequency response: 47-868mhz
• bandwidth: 6mhz, 7mhz, 8mhz
• output level: 90dbuv min
• input level: 0.8vp-p for 80%±10% modulation
• sound system: m=4.5mhz, b/g=5.5mhz, i=6.0mhz, d/k=6.5mhz
• input port: hdmi and cvbs rca
• rf input: f female
• rf output: f female
• input resolution: 1080p/1080i/720p/576p/576i/480p
• hdmi version: 1.3
• hdcp version: 1.3
• operating temperature: 0℃ - +40℃
• dimensions: 6.1x4.1x2.1 in
• weight: 0.71 lb.

Package

• 1 x hdmi to rf modulator (us plug)
• 1 x manual

• HDMI to RF modulator supports both VHF and UHF frequencies, and HDMI and CVBS RCA inputs
• HDMI to RF converter supports multiple resolutions - 1080P/1080i/720P/576P/576i/480p, and features a wide frequency response
• HDMI to RF coaxial converter allows direct RF output via F Female connectors, and no driver installation required
• RF modulator for TV allows users to adjust the AV output level, catering to various equipment sensitivities and preferences
• HDMI to RF modulator is compact and lightweight, made of high-quality ABS and metal materials, ensuring the modulator can withstand regular use
